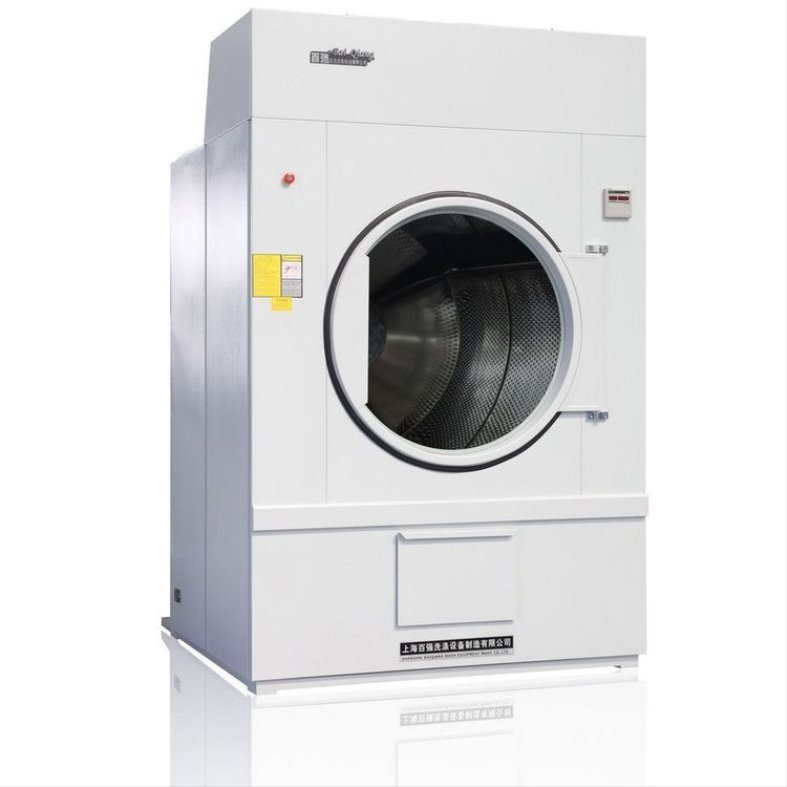

Hotels Hotsell Factory Direct Industrial Laundry Machinery Dryer With Gas Heating

1.0 Sets
MOQ
Hotels Hotsell Factory Direct Industrial Laundry Machinery Dryer With Gas Heating
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: Industrial Washer
Applicable Industries: Hotels, Garment Shops, Industrial Washing Machine
Showroom Location: Turkey, United States, Italy, Viet Nam, South Korea, Colombia, South Africa, Malaysia
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Cleaning Process: Solvent Cleaning
Cleaning Type: Immersion / Soak
Material: Plastic, Metal / Coil
Warranty: 1 Year
Name: Industrial Laundry Machines Dryer
Other Name: Hotsell Industrial Laundry Machines Dryer
New Design: Big Fan ,big Motor,high Effciency
Heater: Big Heater
Seal: Perpect Seal System
Drum Depth: 2700mm
Drum Diameter: 1425
Ravolution: 36rpm
Drum Punch: 12.7
Total Capacity: 13.2kw
After Warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service
Local Service Location: Turkey, United Kingdom, United States, Italy, Saudi Arabia, Indonesia, India
Certification: Ce, ISO9001
After-sales Service Provided: Video Technical Support
Basic Infomation
Certification: ce, ISO9001
Payment & Shipping Terms
Product Description

Hotsell factory direct industrial laundry machines dryer with gas heating

Product Description

Advantages of industrial laundry machines dryer :

Use for: Drying clothes ,bedsheet, quilt, tablecloth, towel, wool ,curtain, bath towel , chemical fiber etc.

1.Screen :LCD toch screen,simple and convenient to operate.

2.Programs :8 drying programs can be set,suit for different linen.

3. Heaters :Adopt new process heaters and ventilation equipment to realize hot air circulate smoothly ,then increase the drying effect.

4. Capacity for eco washer dryer: Increase the drum capacity ,enhance the heating consistency.

5. Square punching: Inside roller is square punching.improve the drying efficiency.

6. New:New stype,big fan,big motor,good heat efficiency, perfect sealing system.

7.High speed for eco washer dryer:total 30mins for a drying process.

Machine Parameter for industrial laundry machines dryer :

Moldel GXH-125Q Blower Motor(kw*4P) 11
Capacity(KG) 125 Total Capacity(kw) 13.2
Water Evaporation Capacity(kg/hr) 210 Steam Pipe (inch) 2"
Steam Consumption(kg/hr) 400 Cooling Pipe(inch) 1 1/2"
Drum Diameter(mm) 1425 Air Compreesor Pipe(inch) 3/8"
Drum Depth(mm) 1708 Min Steam Pressure(kg/cm2) 7.0
Drum Volume(L) 2700 Air Consumption (NL/time) 40
Ravolution (rpm) 36 Exhaust Pipe Section ψ620mm or 3020cm2
Drum Punch(m) 12.7(square) Rated Voltage 380V 50Hz
Blower Air Volume(M3/min) 200 Electric Wiring 10mm2
Front Door(mm) 1100*600 Max Electric Current 30A
Back Door(mm) ψ1337 Power Switch 70A
Control Mode touch surface Dimension (L.W.H) (mm) 2960*2084*2885
Drum Motor(kw*4P) 2.2 Total Weight(kg) 2263

Pictures of industrial laundry machines dryer:
